With our repair PCB you can quickly fix your BMW E92 and E93 defective tail light LED strip. This repair module is made for rear lights on the sides of trunk door. They can be easily installed in position of the original and get your lights working like new again.

You can choose from left side , right side, or a set of both sides.

Our LED repair module is great more affordable alternative to buying new expensive lamp assembly.

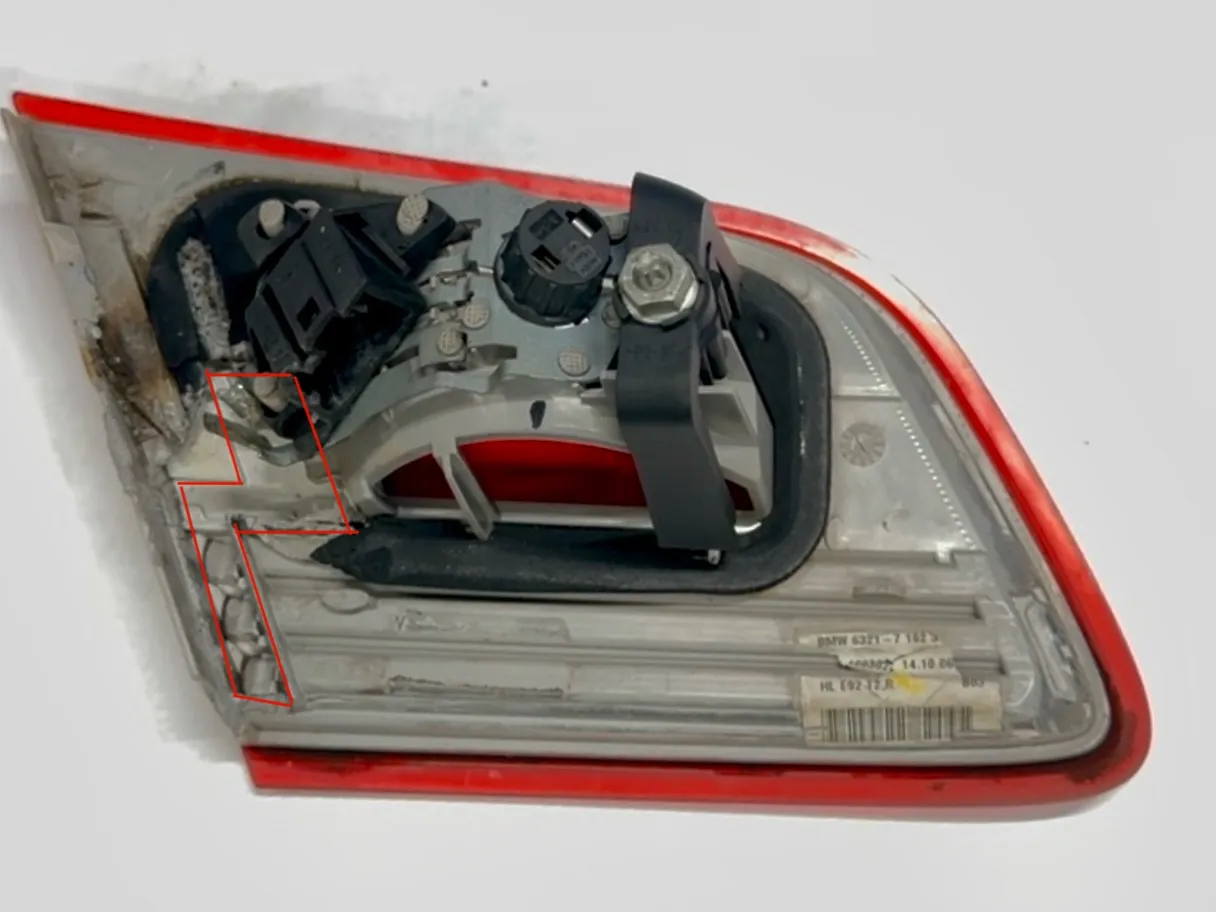

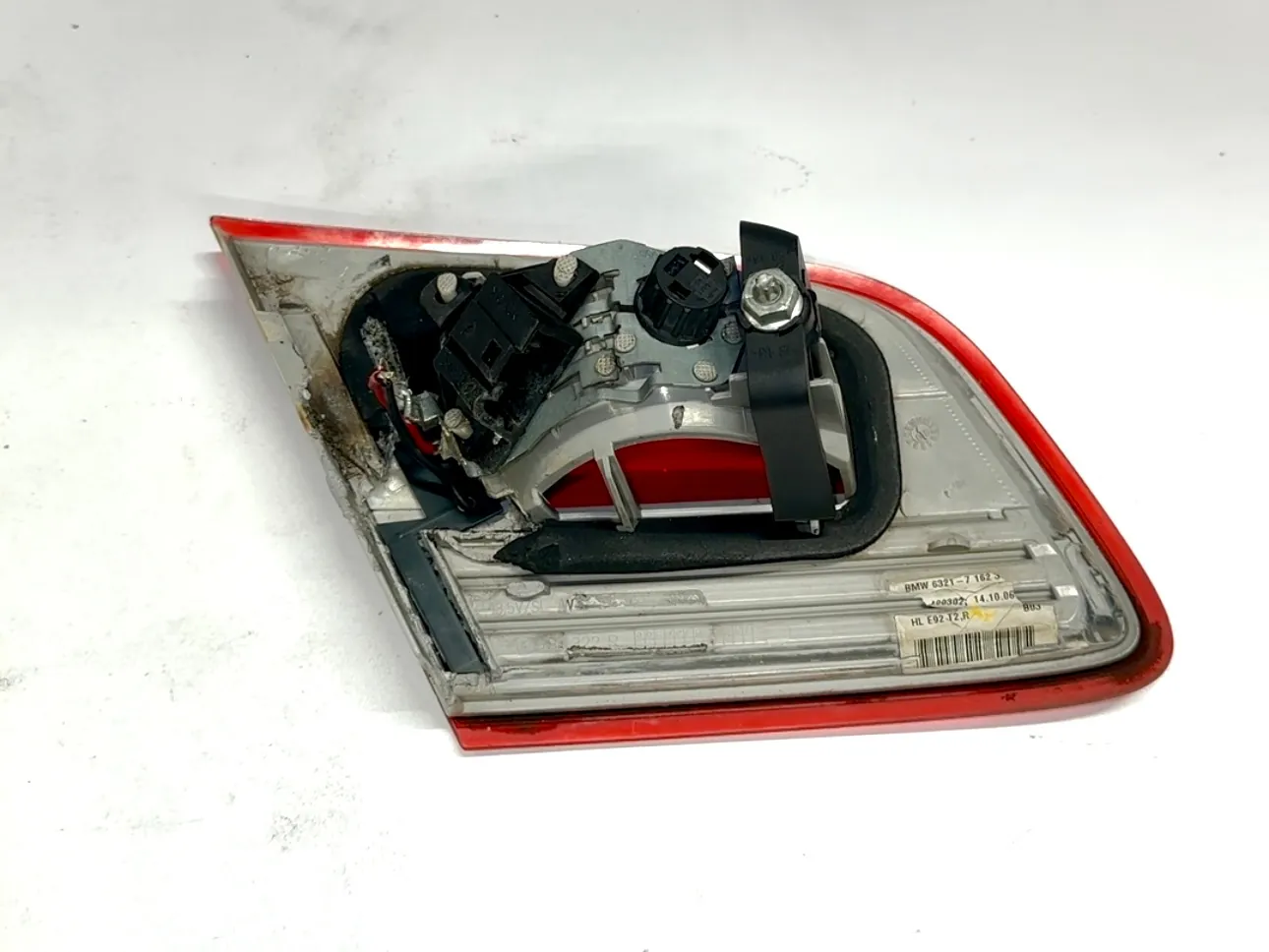

You can preform this repair by yourself (with right tools like dremel) or you can give it to your local mechanics. The light has to be opened in order to install replacement board and you can do that either by cutting the back of the housing with dremel in indicated place, or by using hot knife to slowly melt the glue between the lens and housing (in order to remove the lens). While doing this do not twist the knife as it will shatter the lens edge. We recommend using dremel and cutting the back of the housing as it is less risky installation path.

Compatible with lamp original part numbers:

63217162299 (Left side)
63217162300 (Right side)

Parts included (1 piece of each):
-1x left or right side of PCB LED module

How to repair E92 rear LED strip on / BMW E92 taillight LED fix DIY

The installation should be preformed by experienced professional.

Possible to mix and match with original BMW parts

Lead time: 5 days

ADDITIONAL DETAILS:

Failure of the inner LED strip is a known problem on ageing E92 rear lights. The affected section is located in the inner tail light mounted on the trunk lid, rather than the outer lamp mounted to the rear quarter panel.

When the electronics inside the lamp fail, BMW’s normal replacement route is the complete sealed rear light assembly. If the housing, lens and light guide are still in good condition, replacing the failed electronics provides a much more practical repair.

The Mod-ing E92 tail light LED fix replaces the internal PCB responsible for operating the LED strip and allows the original light assembly to remain on the car.

The BMW E92 rear lighting consists of separate inner and outer lamp sections.

This product is designed for the inner E92 tail lights located on the trunk lid. It is not the replacement PCB for the outer rear lights mounted on the body of the car.

This distinction is important when ordering an E92 LED tail light repair kit, as the inner and outer lamps use different housings and different replacement PCB modules.

If the failed LED strip is on the section of the lamp that moves when you open the trunk, this is the inner trunk-lid tail light covered by this product.

BMW changed the E92 rear lights with the LCI facelift, so it is important to identify which version is fitted to your car before ordering.

This repair PCB is intended for the pre-LCI E92 inner LED tail lights corresponding with BMW lamp numbers:

Left: 63217162299 / 63 21 7 162 299
Right: 63217162300 / 63 21 7 162 300

BMW parts references identify these as inner trunk-lid lamps for pre-LCI E92 applications.
